Upmatic paper machine TYPE 4115

For a wide variety of sealing techniques, products and bag shapes.

The upmatic 4115 is a real all-rounder in the field of paper machines, small to medium paper bags are processed effortlessly.

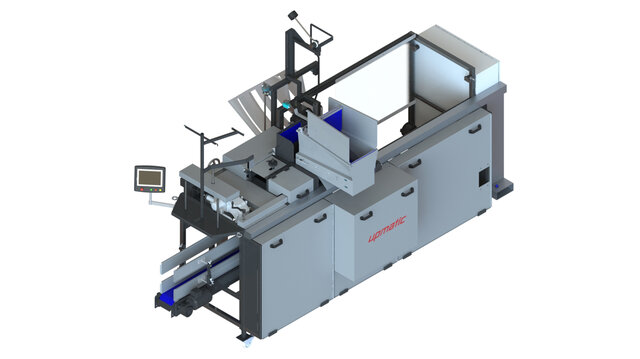

Front view

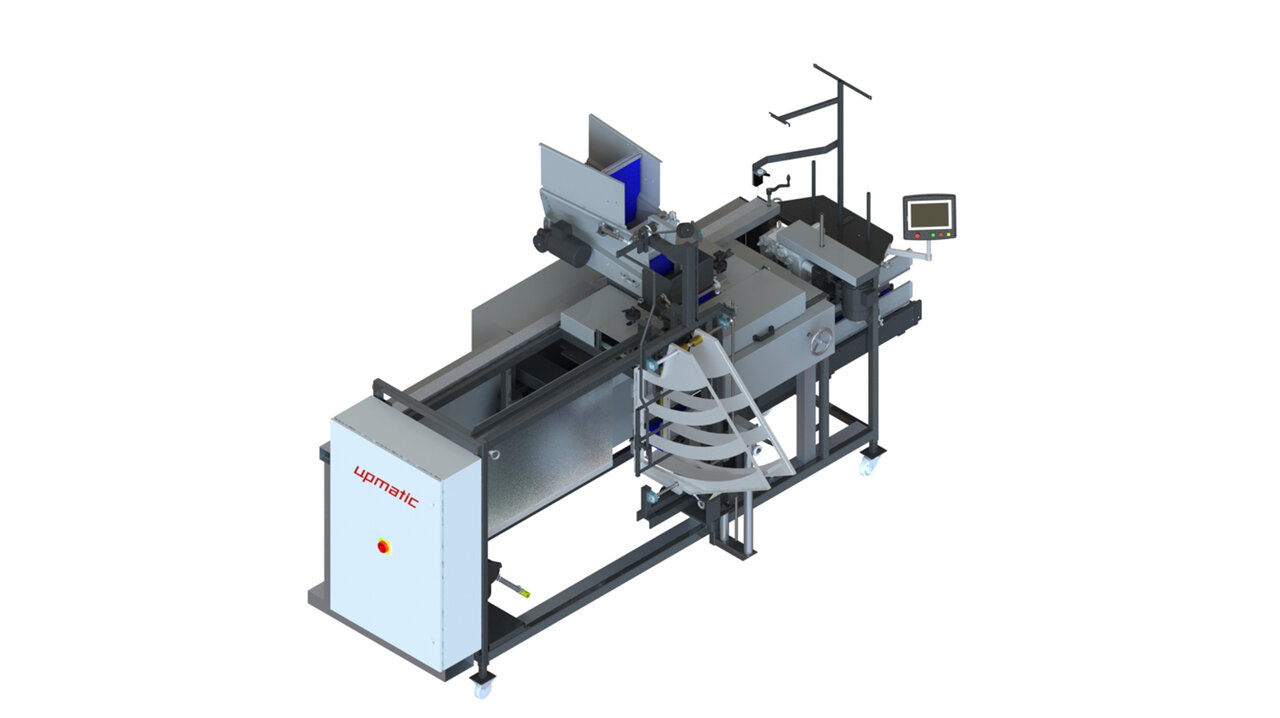

Rear view
Fields of application
Products to be processed

Machine description

Industrial sewing machine or continuous welding Can be equipped with label dispenser and printing systems Vacuum pump

  • Machine model

    • Version available in lacquered.
    • 4110
    • 4115

  • Technical data

    • Packing capacity: up to 18 ppm
    • Min. bag size: 160 mm x 80 x 250 mm
    • Max. Bag size: 300 mm x 180 x 620 mm (entspricht ca. 1,0 - 15 kg Kartoffeln)
    • Rated voltage: 230 / 400 V at 50 / 60 Hz
    • Power consumption: 3.0 kW
    • Air pressure: 6 bar unlubricated
    • Air consumption per cycle: approx. 10.8 l
    • Water requirement: -

  • Accessories

    • Roller conveyor at the discharge
    • Pack conveyor belts in individual dimensions
    • Inkjet printer
    • Thermal transfer printer with adhesive labels
    • Remote control
    • Continuous welding
    • Discharge device
