Upmatic tray dispenser TYPE 606-4

No production stops thanks to revolver magazine!

Reliably destacks paper and plastic trays for fully automatic further processing.

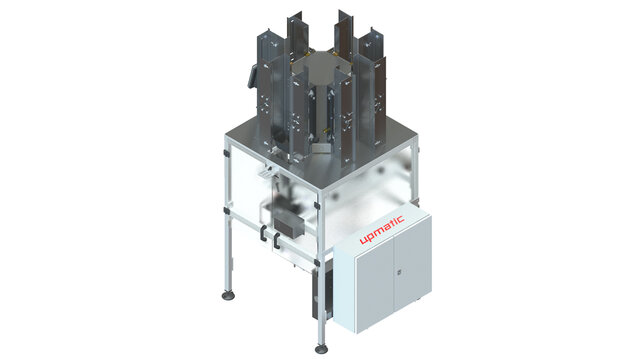

Front view
Rear view
Fields of application
Products to be processed

Machine description

Integration into a fully automatic tray line possible
Four adjustable magazine chutes Vacuum pump

  • Machine model

    • Available in lacquered, galvanised and stainless steel.
    • 606-1
    • 606-2
    • 606-4

  • Technical data

    • Ejection rate: up to 50 ppm
    • Magazine capacity: up to 600 trays
    • Min. tray size (LxWxH): 190 + 145 x 25
    • Max. Tray size (LxWxH): 225 + 165 x 75 other dimensions on request
    • Rated voltage: 230 / 400 V at 50 / 60 Hz
    • Power consumption: 1.0 kW
    • Air pressure: 6 bar unlubricated
    • Air consumption per cycle: approx. 6.0 l
    • Water requirement: -

  • Accessories

    • Revolver magazine
    • Ejection in three directions
    • Magazine monitoring
