Upmatic scale type 1401

The small specialist for the food sector

The upmatic 1401 impresses with its slim appearance as well as its carefully thought-out design and mode of operation. The adaptability of the scale ensures optimal product handling and efficient performance at all times.

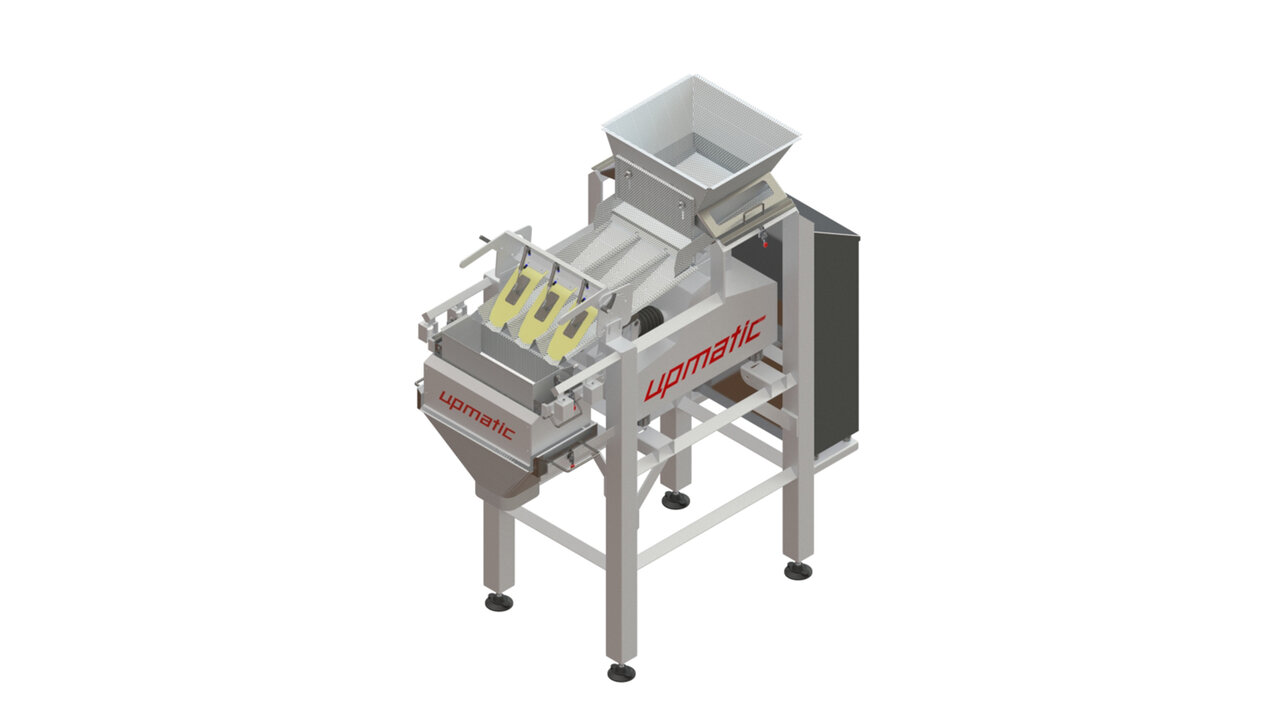

Front right view

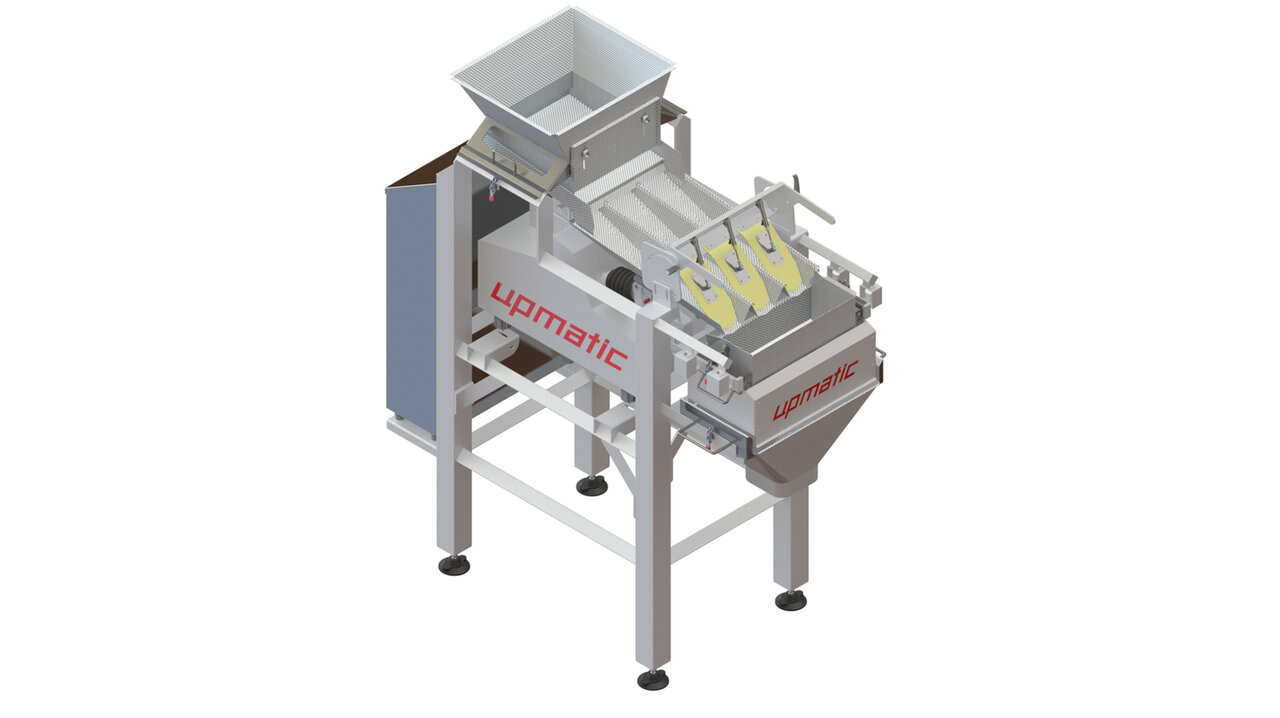

Front left view
Fields of application
Products to be processed


Machine description

The upmatic 1401 works with a multi-stage conveyor system. Removable components facilitate cleaning. Vibration amplitudes and frequencies can be set on the product accordingly. Coupling with two automatic capping machines possible.

  • Machine model

    • Available in lacquered, galvanised and stainless steel.
    • 1401 ISE
    • 1601 ISE

  • Technical data

    • Weighing capacity: up to 15 ppm
    • Weighing range: 0.25 - 5.0 kg
    • Rated voltage: 230 / 400 V at 50 / 60 Hz
    • Power consumption: approx. 1.2 kW
    • Air pressure: 6 bar unlubricated
    • Air consumption per cycle: approx. 0.8 l
    • Water requirement: -

  • Accessories

    • Feeding belts
    • Transverse bands
    • Memory
    • Hand spout
    • Platform/Stage
    • Remote access
